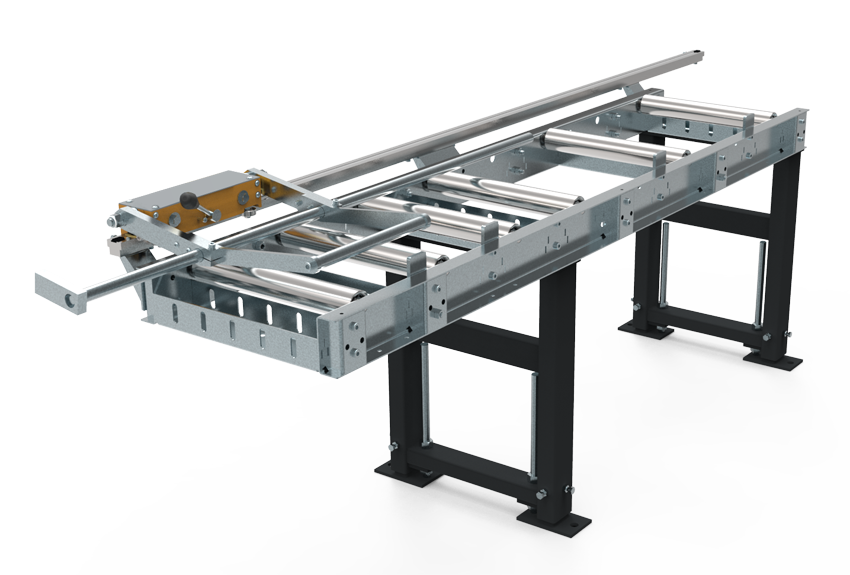

L System

Heavy roller conveyors

An exceptionally stable conveyor system fitted with thick-walled lathe-manufactured steel rollers.
Extreme stability and long service life in its category are ensured by the use of 3 mm-thick galvanized sheets.
The individual modules, 1 or 2 m long, are mutually connectable and enable for adjustment of the optimal conveyor length.
The massive pull-out system allows for adjustable leg height in the range of 755 mm to 955 mm.
Wide range of accessories and connection components.

	roller width	number of legs	number of rollers	roller diameter	total length [mm]	load-carrying capacity [kg/1m]
L 400 / 2m	400	2	6	58	2000	500
L 520 / 2m	520	2	6	58	2000	600
L 400 / 1m	400	1	3	58	1000	500
L 520 / 1m	520	1	3	58	1000	600

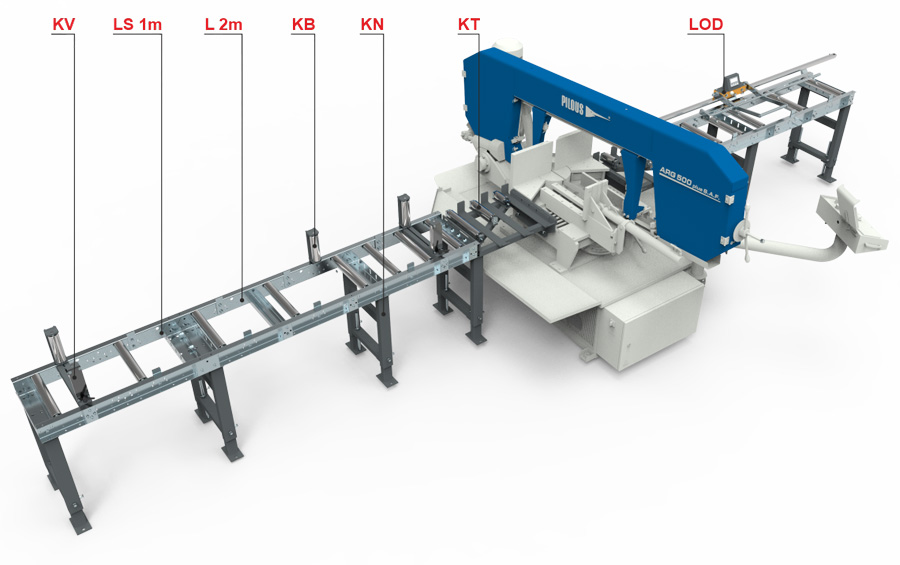

LS – Extension to L conveyor

Module length 1 m and 2 m.
The same frame is fitted with fewer rollers.

	roller width	number of legs	number of rollers	roller diameter	total length [mm]	load-carrying capacity [kg/1m]
LS 400 / 2m	400	1	4	58	2000	500
LS 520 / 2m	520	1	4	58	2000	600
LS 400 / 1m	400	1	2	58	1000	500
LS 520 / 1m	520	1	2	58	1000	600

Accessories for the L conveyors

KO – Manual measuring device

A simple and effective measuring of the required material length.
This massive system with a robust cast iron housing of the slide stop moves on precise steel guiding and ensures great accuracy of the setting and a long service life.
You can set the required length manually on an analogue (millimeter) scale.
The system of movable side stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.
Can be installed on all types of L conveyors.

	measured length [mm]	total length [mm]
KO 400, 520, 650, 750 / 2m	2000	2400
KO 400, 520, 650, 750 / 3m	3000	3400
KO 400, 520, 650, 750 / 4m	4000	4400
KO 400, 520, 650, 750 / 5m	5000	5400
KO 400, 520, 650, 750 / 6m	6000	6400

(includes the slide stop system, feed system and an analogue scale of the appropriate length, not the conveyor itself)

KOD – Digital measuring device

Ensures precise and simple setting of the required length as well as display of the position on the digital display with the accuracy of 0.1 mm.
This massive system with a robust cast iron housing of the slide stop moves on precise steel guiding and ensures great accuracy of the setting and a long service life.
The required length is set manually and arrested. The system is fed by batteries with a long service life.
Exceptionally stable system of movable slide stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.
Can be installed on all types of L conveyors.

	measured length [mm]	total length [mm]
KOD 400, 520, 650, 750 / 2m	2000	2400
KOD 400, 520, 650, 750 / 3m	3000	3400
KOD 400, 520, 650, 750 / 4m	4000	4400
KOD 400, 520, 650, 750 / 5m	5000	5400
KOD 400, 520, 650, 750 / 6m	6000	6400

(includes the slide stop system with a digital measuring device, the feed system, and a magnetic tape of the appropriate length, not the conveyor itself)
